Ecko Cable products include various kinds of Wires and Cables - Power & Control Cables, Industrial/House & Building Wires, Single & Multi Core Flexible Cables, 3 Core Flat Submersible Cables conforming to IS:694-2010, Instrumentation Cables, Telecommunication Cables, LT XLPE /PVC Power and Control Cables as per IS:7098(Part -1) - 1988, IS:1554(Part 1)- 1988 and Railway Signaling Cables* conforming to various IRS Specifications i.e. IRS-S63/2014 (Rev.4.0) & IRS-S-76/89 (Amd.3) and also as per customer’s special specification.
*[manufactured by our associate firm Evershine Electrical Works(l)] .
Description :- 1.1KV, PVC Insulated, FR/FRLSH Wire.
Sizes Covered :- 0.75 to 6.00 Sq.mm.
Conductor:- As per IS:8130-2013.
(i) 0.75 to 6.00 Sq.mm →Bunched Flexible Copper
(ii) 1.00 to 6.00 Sq.mm →Solid/ Stranded Copper
Application:- For Domestic & Industrial usage.

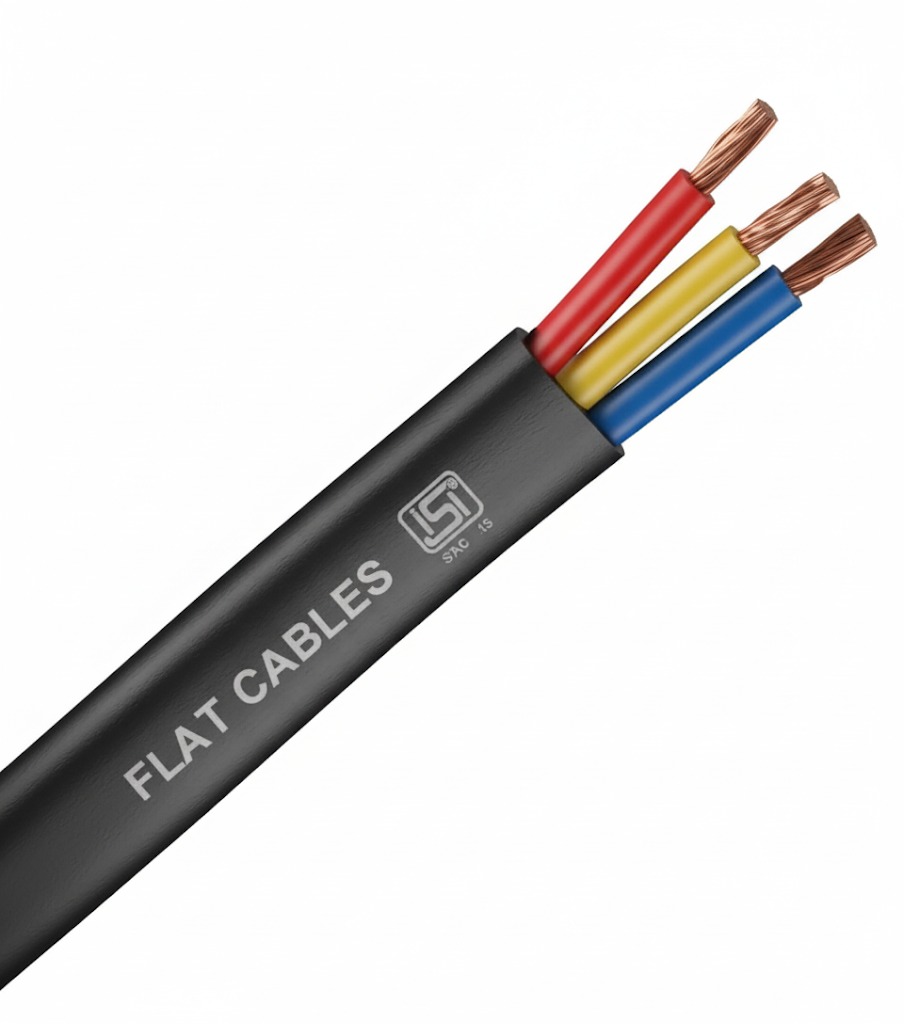

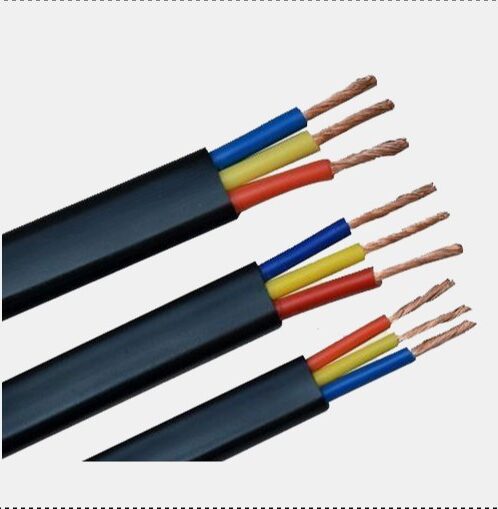

Sizes Covered :- 1.1KV, 3 Cores Flat Cable upto 95
Sq.mm.
Conductor :- (i) 0.50 to 95
Sq.mm→ Bunched Flexible
Copper
(ii) 1.00 to 2.50 Sq.mm→
Stranded Copper
As per IS:8130-2013.
Application :- For
Submersible Pumps &
Specified Industrial usage.
Discription:- Flexible Copper
Conductor, PVC Insulated, Overall
Shielded with Aluminium Mylar
Tape along with 0.50 Sq.mm
Copper Drain wire & Overall
Sheathed Cable, up to 300/600
Volts
Armoured Cable can be supplied as per Customer’s requirement.
Sizes Covered :- 2 to 24 Cores & 0.50 to 2.50 Sq.mm
Conductor :- Bunched Flexible Copper Conductor (Class-5) as per IS:8130-2013.
Application :- Automation, Control circuits for signals etc.
Description :- 1.1KV, Crosslinked Polyethylene
(XLPE) Insulated, Inner Sheathed
(Tape/Extruded), Armoured/Unarmoured
& PVC Outer Sheathed Cables.
Sizes Covered :- Single Core- Upto 1000
Sq.mm.
Multi Core :- Upto 630 Sq.mm.
Conductor :-Aluminium / Copper
Characteristics :- Maximum operating
temperature 90°C, High Volume
Resistivity, High Current Carrying
Capacity.
Application :- Power supply, Industry, Commercial & utilities.
Description :- 1.1KV PVC Insulated (Heavy
Duty), Inner Sheathed
(Tape/Extruded), Armoured / Unarmoured & PVC Outer Sheathed
Cables.
Sizes Covered :- Single Core- Upto 1000Sq.mm.
Multi Core :– Upto 630 Sq.mm.
Conductor:- Aluminium / Copper.
Characteristics:- Maximum operating temperature 70°C
Application :- Power supply, Industry, Commercial establishments & utilities.
Sizes Covered :- 1.50 & 2.50
Sq.mm.
Insulation :– PVC – As per
IS:1554 (Part-1)-1988
XLPE – As per IS:7098 (Part-1)-
1988
Conductor :- Copper
(Solid/Stranded)
Nos. of Cores :- 2 to 37 Cores
Type of Cable:- Armoured/Unarmoured
Application :- Control Circuits in Industry & Automation, Motor
Drives etc.
